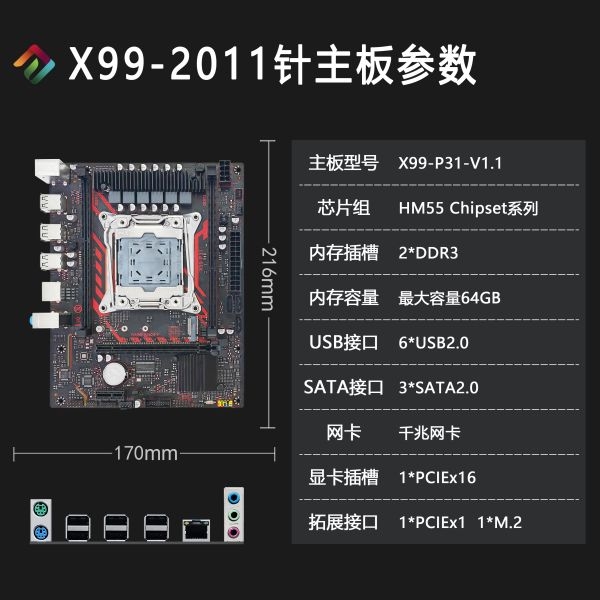

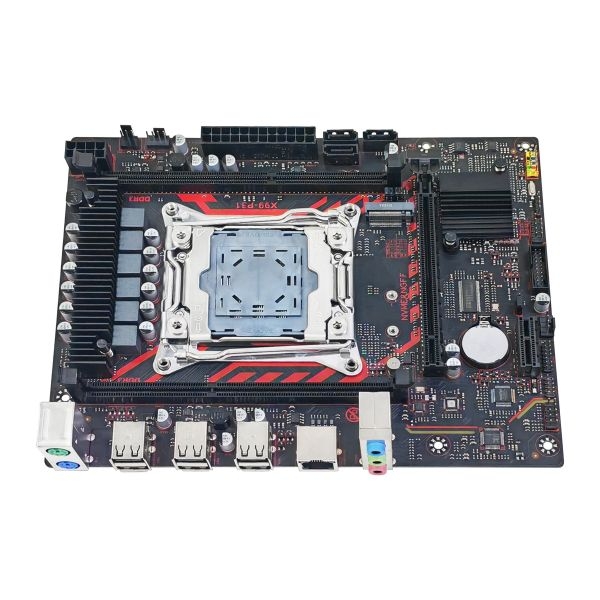

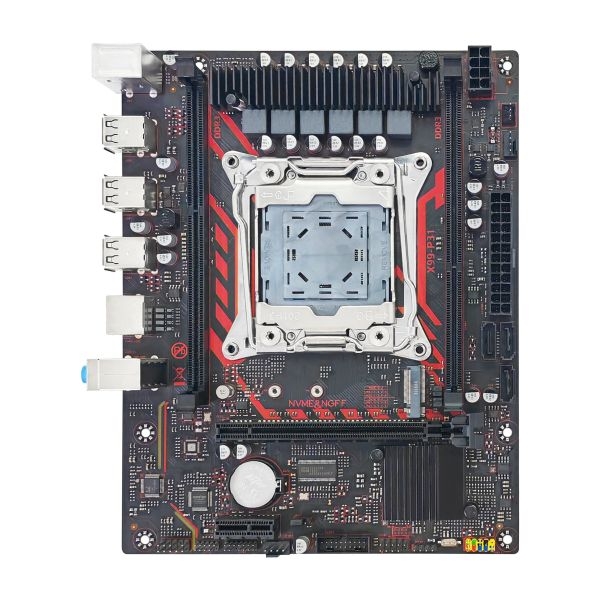

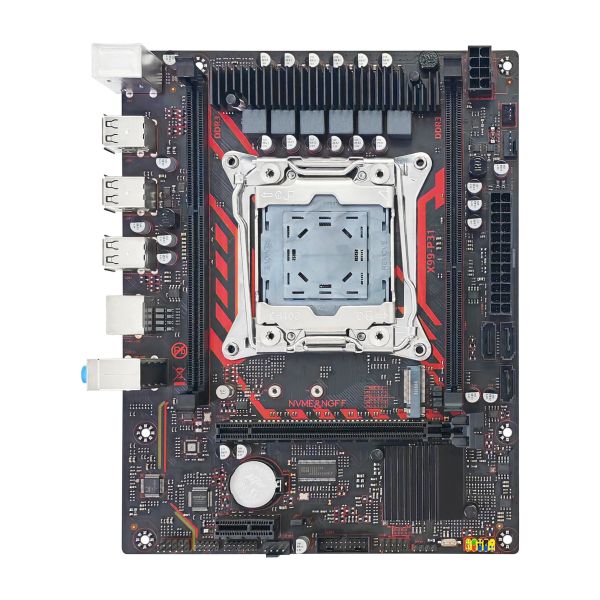

Motherboard chip

HM55 PM55

CPU

Optional: E52696v3, E52678v3, E5266v3, E52673v3 and so on.

memory

2 * DDR 3 DIMM, 1066/1333/1600/1866 MHz, single slot supports 32G at most.

Cunzhu

1* M.2 slot NGFF/NVME mode jumper switch); 3*SATA 2.0 interface

network

1*RJ45 interface

Network card chip

Realtek RTL8111H Gigabit NIC Chip

PCIE slot

1*PCIE X16 slot; 1*PCIE X1 slot

audio frequency

1*Line out； 1*MIC In； 1*Line In； 1*F_Audio built-in pin

Audio chip

Realtek ALC897 HD Audio Chip

PS/2 interface

1*PS2 keyboard mouse interface

Usb interface

IO interface: 6 * USB 2.0;

Built-in pins: 2 sets of USB2.0 pins (4 USB2.0 ports can be expanded)

Functional pin

1*FPANEL panel pin; 1*4Pin buzzer pin; 1*4Pin CPU fan; 1*4Pin SYS fan; 1*3Pin SYS fan

Power input

24Pin+8Pin ATX power socket

product size

ATX motherboard specification, 170 x 216 mm x 4L

Working temperature

-10℃~60℃

Working humidity requirements

10%~90% without condensation

Storage temperature

-25℃~70℃

power consumption

Standby power consumption: 50~70W Full load power consumption: 180~260W

other

1*JCMOS jump cap; 2*5Pin diagnostic card interface
