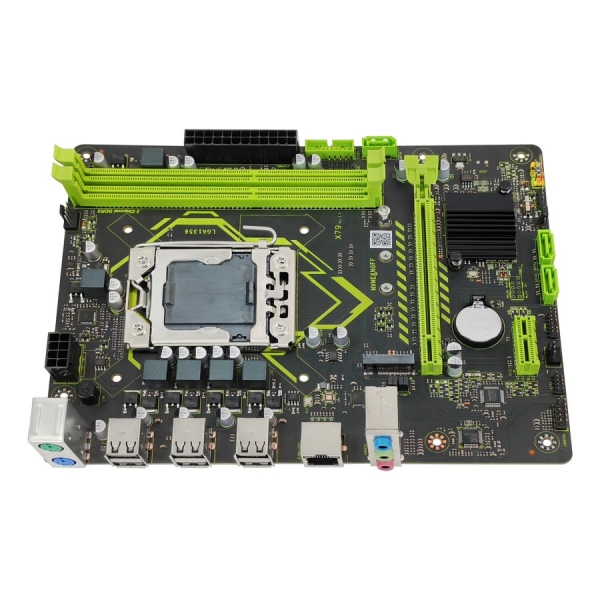

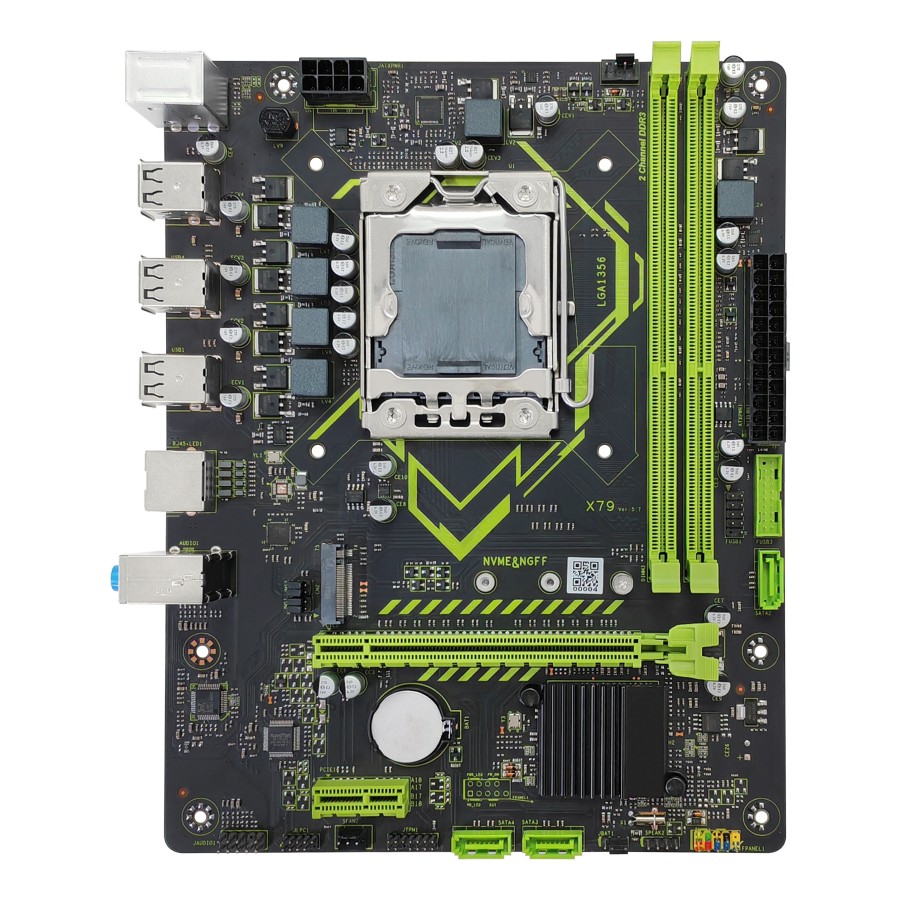

Motherboard chip

Intel H61

CPU

InteI LGA 1356-pin series CPU

Optional: E5-2450,E5-2470V2, etc.

memory

2*DDR3 DIMM, 1600MHz/64G, single slot maximum support 32G.

Cunzhu

1* M.2 slot (PCI-E 3.0x4 NVME SSD and SATA 2.0, dip switch needs to be switched); 3*SATA2.0 interface

Display interface

PCIE X16 slot is connected to the display card.

network

1*RJ45 interface

Network card chip

Realtek gigabit network card chip

PCIE slot

1*PCIE 3.0X16 slot; 1*PCIE 2.0X1 slot

audio interface

1*Line out； 1*Mic In； 1*Line In; 1*JAUDIO pin

Audio chip

Realtek HD audio chip

serial port

/

PS/2 interface

1*PS2 keyboard mouse interface

Usb interface

Rear interface: 6*USB2.0

Front pins: 1 set of USB2.0 pins and 1 set of USB3.0 pins (4 USB2.0 can be extended).

Functional pin

1*FPANEL panel pin; 1*4Pin buzzer pin; 1*4Pin CPU fan; 1*3Pin SYS fan; 1*14Pin TPM pin

Power input

24Pin+8Pin ATX power socket

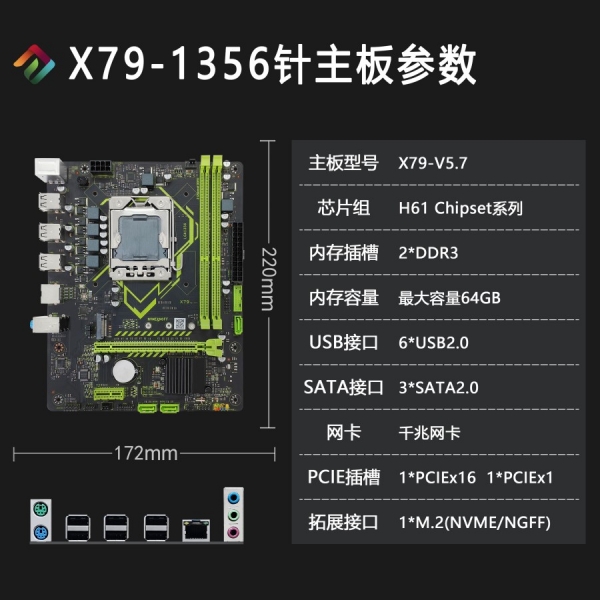

product size

172x 220 mm x 4L

Working temperature

-10℃~60℃

Working humidity requirements

10%~90% without condensation

Storage temperature

-25℃~70℃

power consumption

Standby power consumption: 40~70W Full load power consumption: 110~260W (for reference only)

other

1*JBAT jumping cap; 2*5Pin diagnostic card interface;
