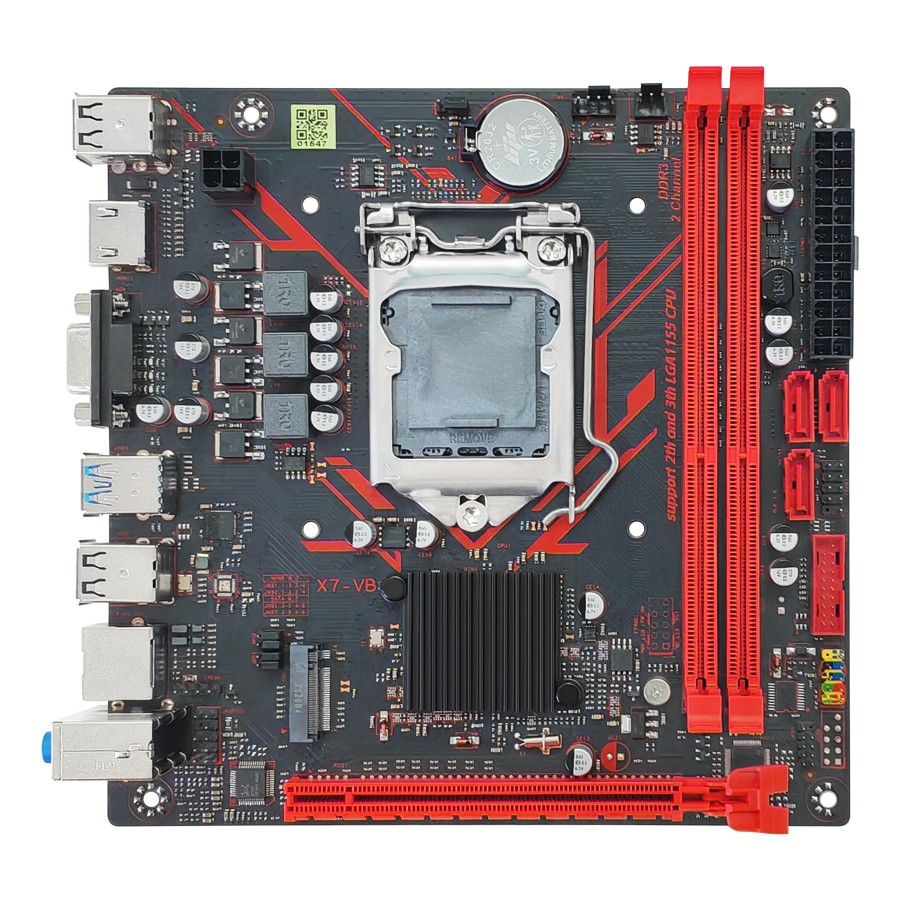

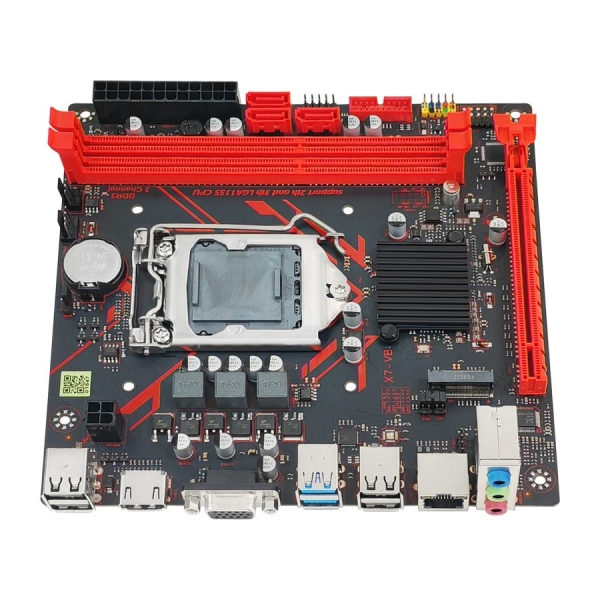

Motherboard chip

Intel B75 chipset

CPU

Support LGA1155 slot-2nd/3rd generation processors:

Intel Core i3/i5/i7 processors;

Intel® Pentium® processor/Intel® Celeron® processor/Intel® Xeon E3 processor;

memory

Dual-channel memory architecture;

2*240-Pin DDR3 DIMM slot, which supports the maximum memory of 16G (8G * 2); Support DDR3 1600/1333/1066MHz.

(Actual memory frequency support depends on processor type and memory stick)

save

1* M.2 slot (NVME&SATA protocol);

3* SATA 2.0 interface

Video interface

1*HDMI+1* VGA (supporting synchronous dual display)

Network function

1*(RJ45+LED) interface (Realtek 100M network card chip)

PCIE expansion slot

1*PCIE1 slot (1x PCIe x8 slot);

audio frequency

1*Line out； 1*MIC In； 1*Line In； 1*JAudio front audio connector (Realtek HD audio chip)

Usb interface

Rear panel: 4 * USB 2.0; 2*USB3.0

Front panel: 1 set of FUSB1 pins (2 USB2.0 ports can be extended);

1 set of FUSB3 connector (2 USB3.0 ports can be expanded);

Functional pin

1*FPANEL panel pin; 1*4Pin CFAN； 1*3Pin SFAN； 1*SPEAK pin

Power input

24Pin+4Pin ATX power socket

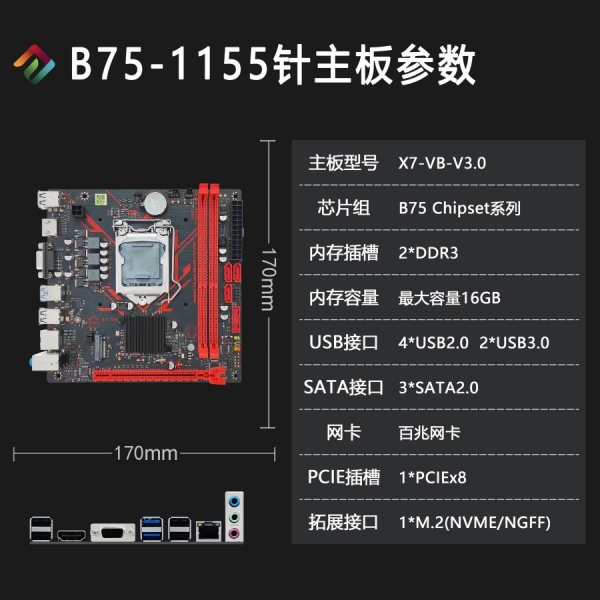

product size

ITX motherboard specification, 170 x 170 mm x 4L

Working temperature

-10℃~60℃

Working humidity requirements

10%~90% without condensation

Storage temperature

-25℃~70℃

power consumption

Standby power consumption: 30~35W Full load power consumption: 105W~125W (for reference only)

(If you want to install hardware equipment with high power consumption, please use a high-power power supply.)

other

1*JLPC needle connection; 1*JBAT zero clearing needle; 2 sets of M.2 mode switching pins (JMS1/JMS2)
