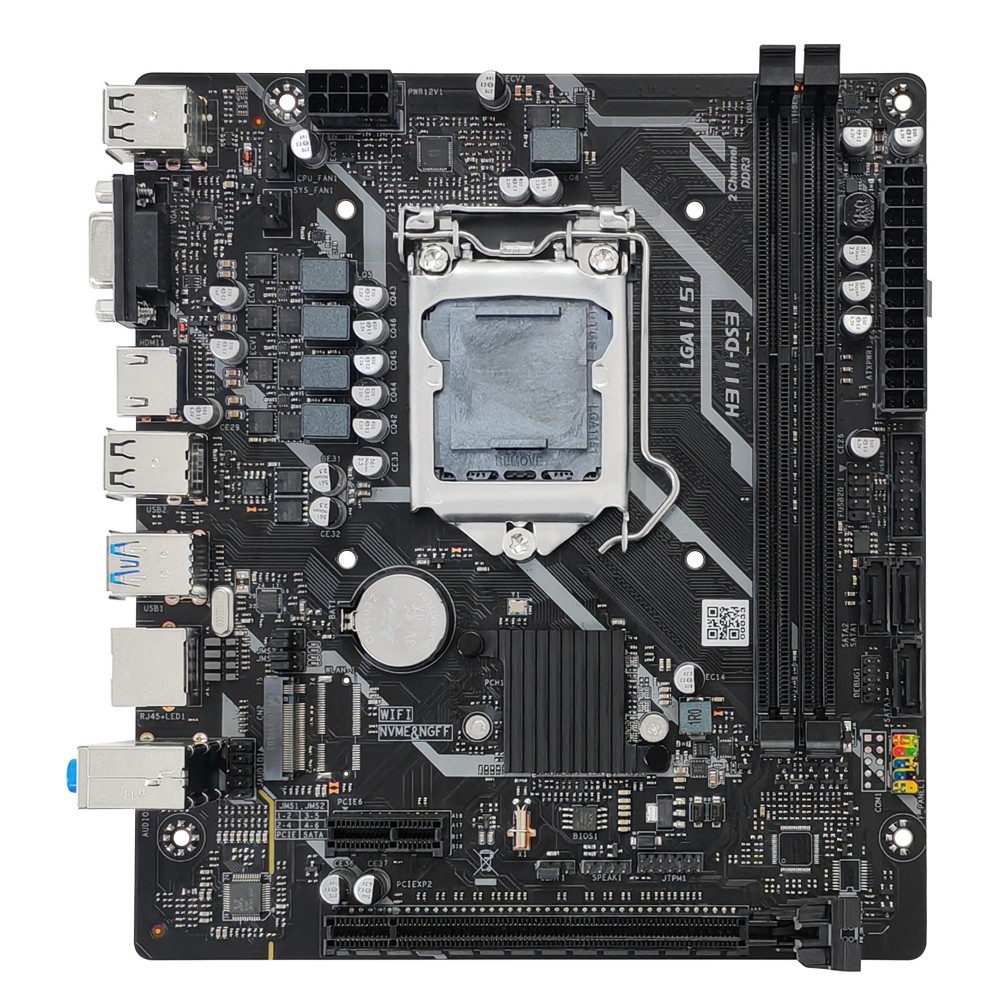

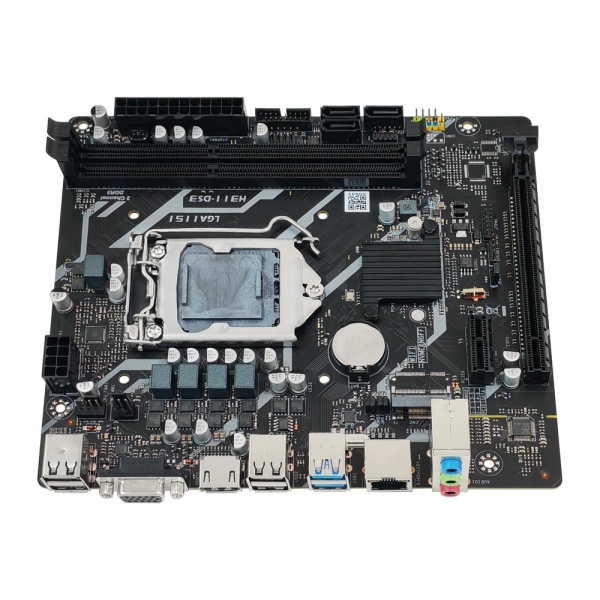

Motherboard chip

Intel H110

CPU

Intel LGA1151 architecture 6, 7, 8, 9 series processors

Optional: I3-6100, I3-7100, I5-7400, I5-8500, I3-9100, I7-9700, G5400, G3900, etc.

memory

2*DDR3 DIMM, 1333/1600MHz/16G, single slot supports up to 8G.

Cunzhu

1*M.2 slot (supporting NVME 3.0 X4 and NGFF 3.0 modes, and switching between caps); 3*SATA3.0 interface

Display interface

1*HDMI interface; 1*VGA interface

M.2 WIFI

1*M.2 WIFI slot (optional)

network

1*RJ45 interface

Network card chip

1*Realtek Gigabit NIC chip

audio frequency

1*Line out； 1*MIC In； 1*Line In； 1*F_Audio built-in pin

Audio chip

1*Realtek HD Audio Chip

PCIE slot

1*PCIE X16 slot (PCIE3.0 X16 signal)

1*PCIE X1 slot (PCIE3.0 X1 signal)

Usb interface

IO interface: 2*USB3.0, 4 * USB 2.0;

Built-in pins: 1 set of USB2.0 pins (2 USB2.0 ports can be expanded)

1 set of USB3.0 pins (2 USB3.0 ports can be expanded)

TPM

1*TPM pin

Functional pin

1*FPANEL panel pin; 1*4Pin CPU fan; 1*3Pin SYS fan

Power input

24Pin+8Pin ATX power socket

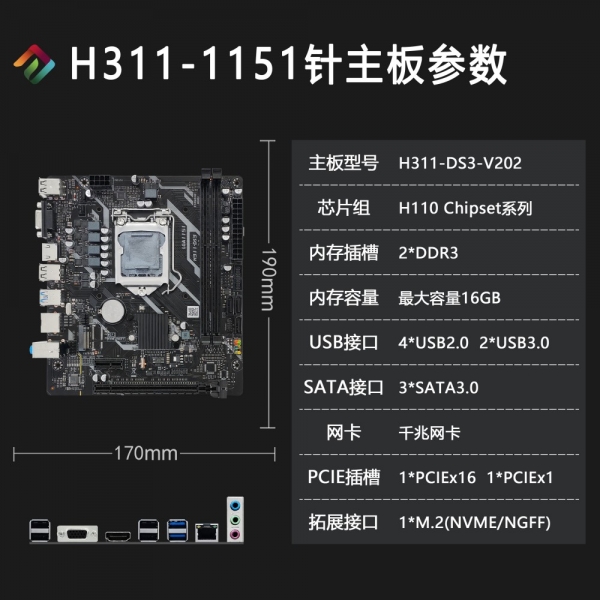

product size

170 x 190 mm x 4L

Working temperature

-10℃~60℃

Working humidity requirements

10%~90% without condensation

Storage temperature

-25℃~70℃

power consumption

Standby power consumption: 20~40W Full load power consumption: 120~160W (for reference only, excluding discrete graphics power consumption)

other

1 JBAT jump cap; 1*Speak pin (buzzer); 1*DEBUG pin (diagnostic card)
